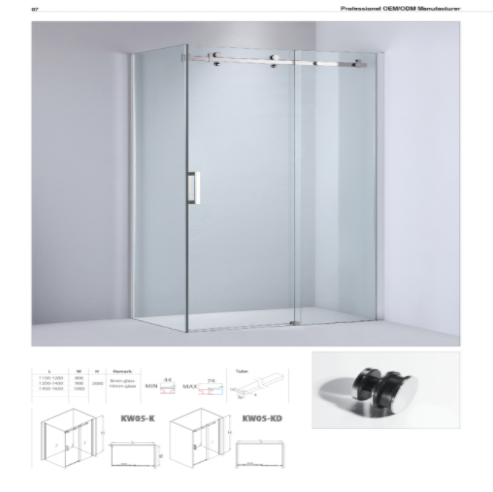

Glass size (1150-1650) *(800-1000)*2000mm
A. 8mm/10mm safety tempered glass.
B. 304# stainless steel top rail and pulley and handle and other hardware.
The size of the square tube is 10*30mm. And the wall profile thickness is 1.8mm.
the diameter of pulley is 40mm.
C. 304# stainless steel or polished aluminum frame, max 30mm adjustment. The luminosity of 304# stainless steel is 8K, and the aluminum is above 500.
D. Door side can be installed as wall to wall, or rectangular shower enclosure with return panel.
E. Shower tray is optional.
Glass thickness 8/10mm
Glass material tempered clear glass
Handle 304# stainless steel handle.
Wall: Designed to install against tiled walls.
Adjustable Extensible wall frame 20mm to 30mm.
Frame material 304# stainless steel or polished aluminum frame.
Warranty 10 years
