PRODUCT SPECIFICATION
3/8 in. (10 mm) thick clear tempered glass
Chrome or Brushed Nickel hardware finish
Frameless glass design
Out-of-plumb installation adjustability: Up to 3/8 in. per side
Pivot door with full length magnetic door latch
Anodized aluminum wall profiles
Finished walls required for measurement and installation
Reversible for right or left door opening installation
Material: Tempered Glass, Brass
Optional SlimLine shower base sold separately
Tempered glass ANSI certified
Plumbing codes vary by state; DreamLine is not responsible for code compliance
Note: To minimize leakage, install shower head opposite of door opening aimed at tiled walls, fixed shower panel or
floor
Product Warranty:
Limited 5 (five) year manufacturer warranty

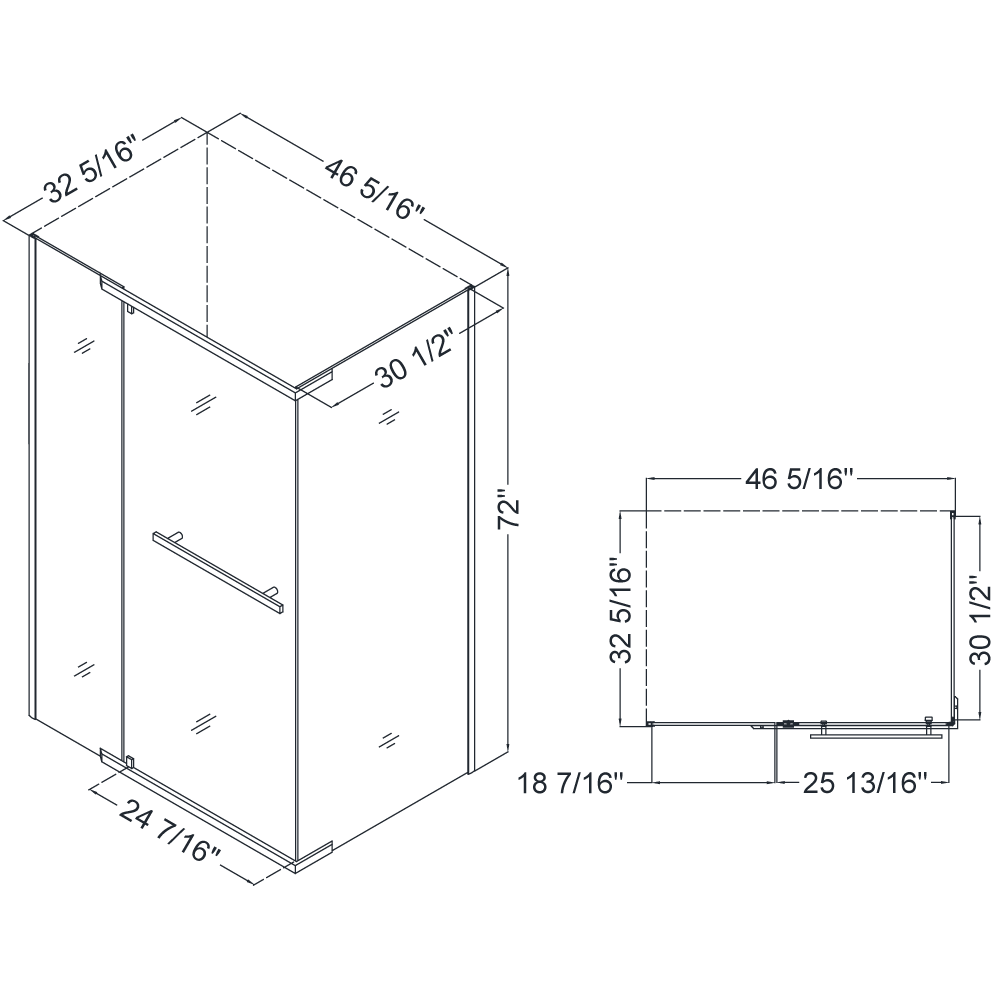

| Model Number | Glass Thickness | Size, in. D x W x H |
Suggested Base |
| SHEN-1132460 | 3/8″ | 32 5/16 x 46 5/16 x 72 | DLT-1034481 (Left-hand Drain) DLT-1034482 (Right-hand Drain) |
| SHEN-1134340 | 3/8″ | 34 5/16 x 34 5/16 x 72 | DLT-1036360 |
| SHEN-1134460 | 3/8″ | 34 5/16 x 46 5/16 x 72 | DLT-1036481 (Left-hand Drain) DLT-1036482 (Right-hand Drain) |
| SHEN-1134581 | 3/8″ | 34-5/16 x 58-3/8 x 72 | DLT-1036601 DLT-1036602 |
| Shower Doors | |
|---|---|
| Finishing | |
| Brand |
QuatraLux
